LX-1 |
||||||||
Outside size |
8350×4000×3200mm(L×W×H) |
|||||||
Inside size |
6900×3900×2650mm(L×W×H) |
|||||||
Entrance door |
3 folds,3000x2600 mm(W×H), bending steel door |
|||||||
Emergency door |
650*2000mm(W*H),equipped with handle lock |
|||||||
Main System |
||||||||
Cabin system |
Wall panel |
-Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation. -High quality galvanized steel roof panel. |
||||||
Basement |
Optional |
|||||||
Ventilation system |
Inlet fan |
Optional |
||||||
Outlet fan |
1 set European-style exhaust air fan, air capacity:18000m³/h. Large air volume and low noise. |
|||||||
Cabinet setting type |
-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful. -Cabinet for the fan*1unit ,air duct*2units. -Elbow:90°*1 unit. |
|||||||
Airflow speed |
On load 0.3m/s,ventilation rate:280time/h |
|||||||
Heating system |

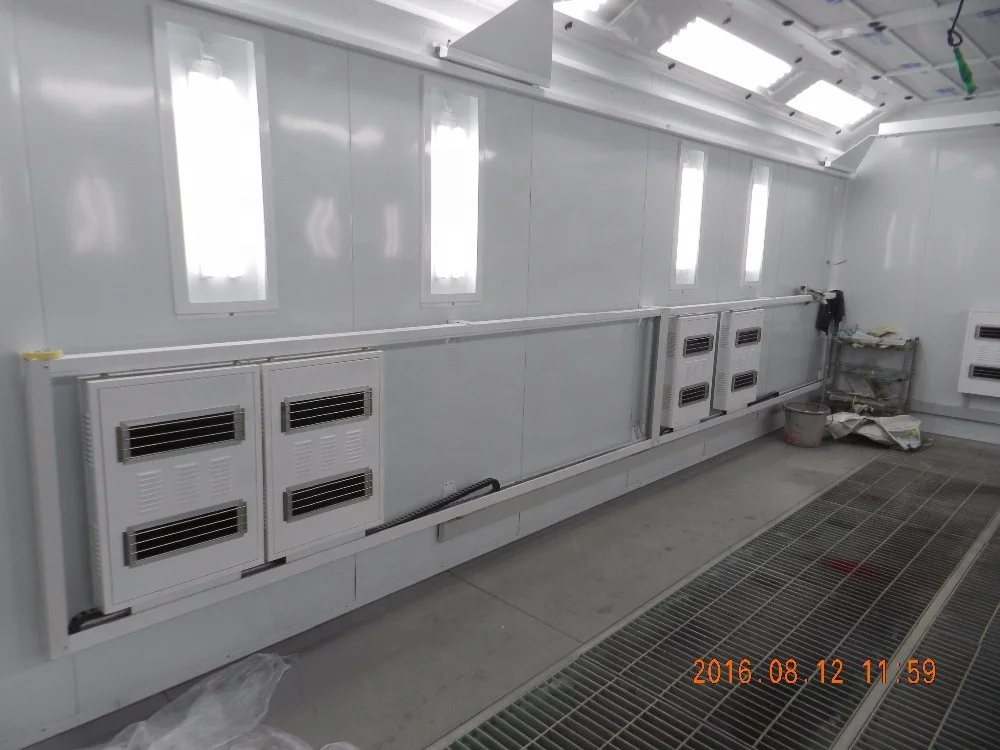

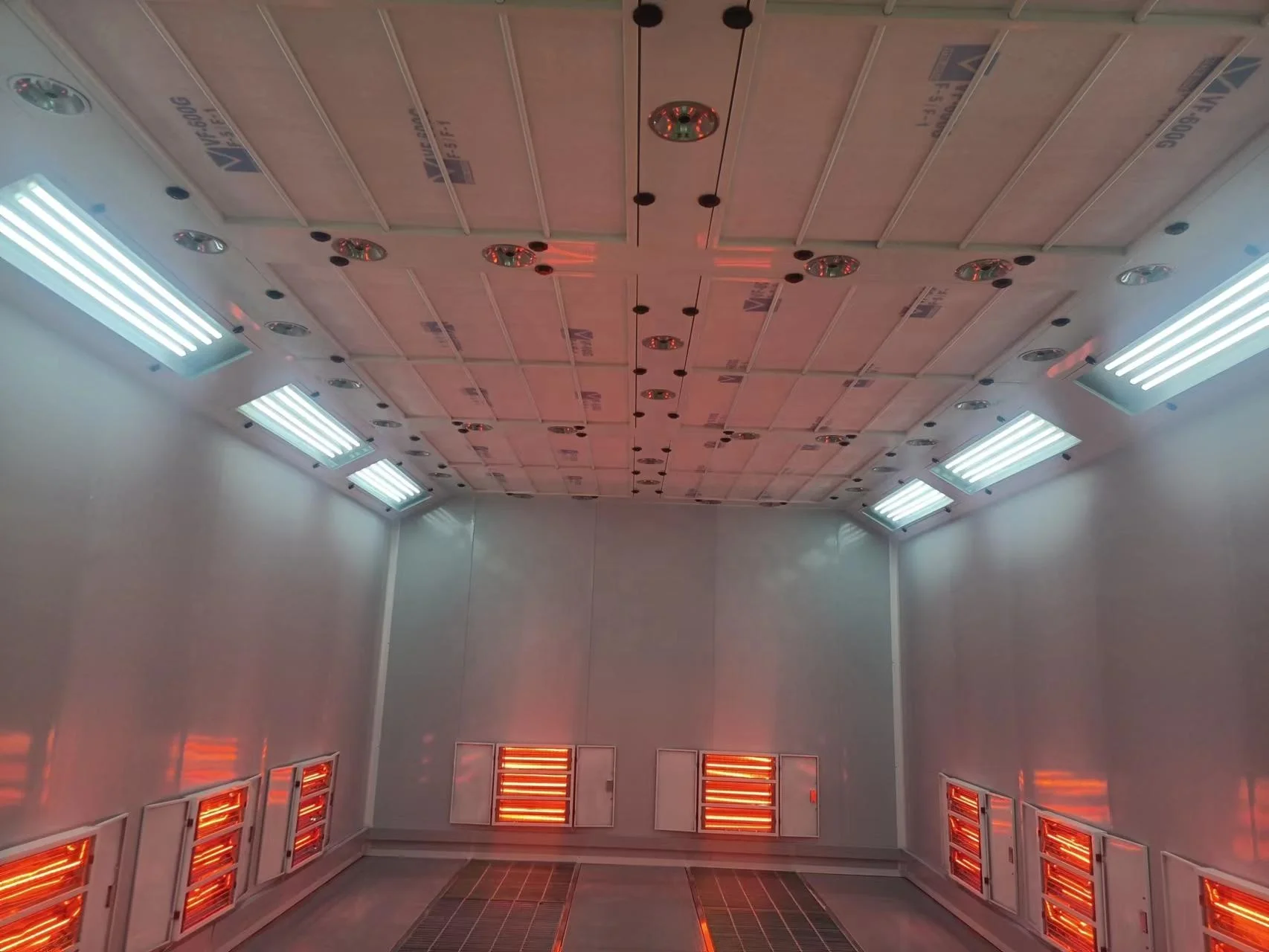

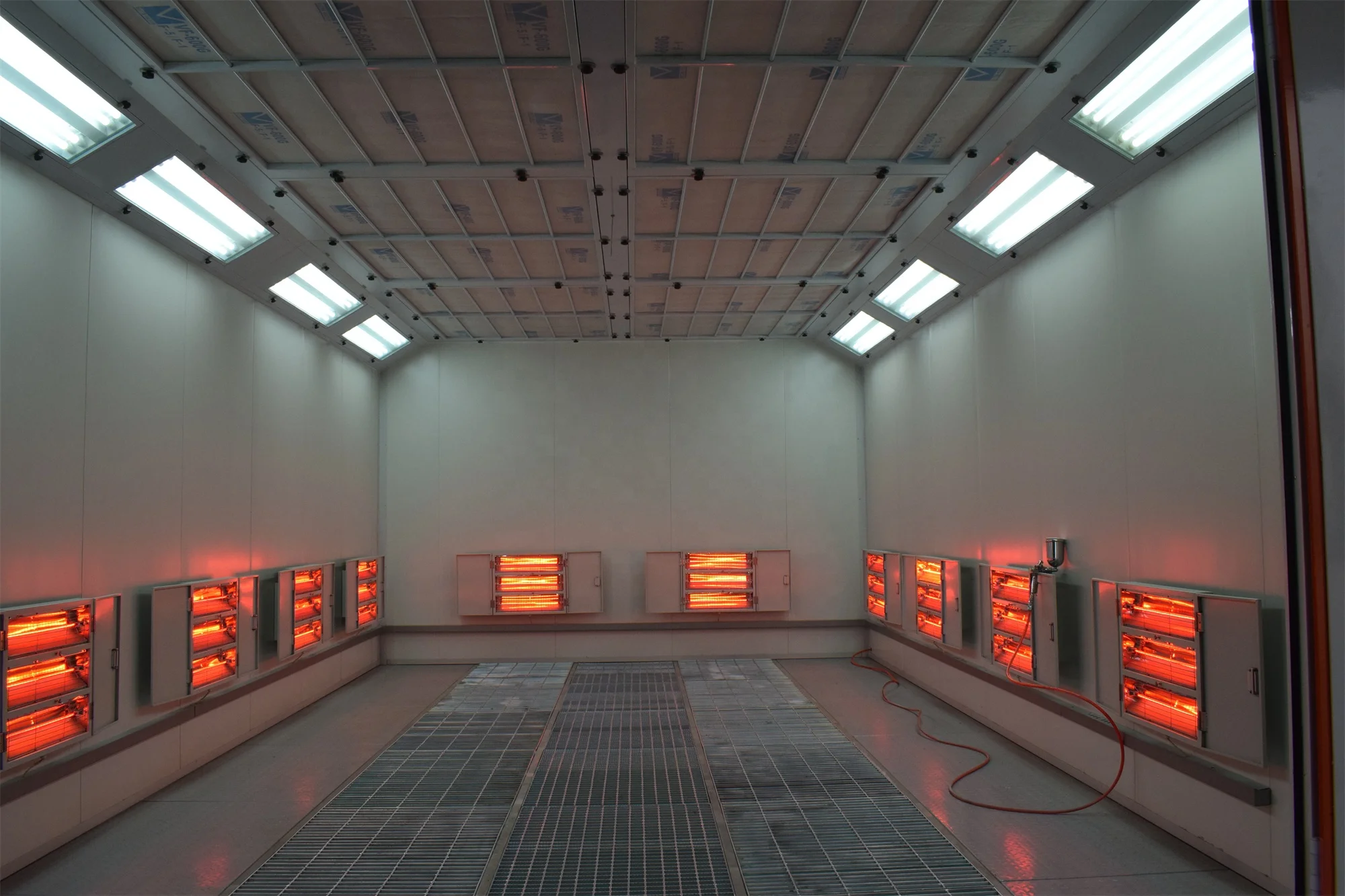

Optional : Movable infrared baking lamps(3 lamps or 6 lamps) |
|||||||
Lighting system |
Ceiling lights |
32pcs*16w LED lighting |
||||||
Side lights |
Optional |
|||||||
Filtering system |
Primary filter |
Grade G2 plate type , filtering rate＞83% |
||||||
Floor filter |
Multi-layer fiberglass filter,filtering rate＞70% |
|||||||
Control system |
Control panel |
Intelligent control system |
||||||
Function |
Lighting,painting, Overload, lack of phase protection |
|||||||
Total power |
6 KW |
|||||||
Voltage/ frequency
|
380V,50HZ,3phase |
|||||||
